7-10 Day Turnaround and Cut-off Time:
Order and submit artwork before 4pm PST ships in 7-10 business day. Order after 4pm add 1 business day.
Same Day Turnaround:
Not available for this product.
Available Production Facility
Your orders are dispatched from the closest facility to your ship-to address for speed and savings
Store pickup only available in our California locations
Description
Front
Back

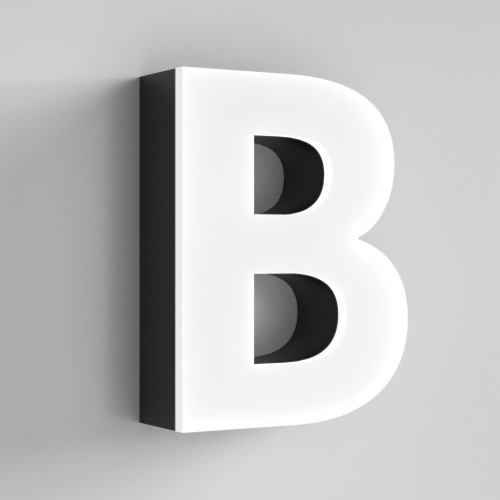

This Front Lit Stainless Steel letter comes standard with a white acrylic face and Stainless Steel return. Color can be customized on any Stainless Steel surface. This is a sturdy front lit option if you are looking for something simple and sleek.
- Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
- Certified: UL Listed with Sign Section Labels for Outdoor Installation
- 5 Year Warranty
Components
Face
Faces are the front surface of Front Lit stainless steel letters
Specification
15mm Polycarbonate White Acrylic
Return
Returns are the sides of the Front Lit letter.
Specification
2" or 3" 0.8mm/1mm Stainless Steel Returns
Back
Backs are the back board of the Front Lit stainless steel letter.
Specification
0.8mm/1mm Stainless Steel
LED Lights
Specification
Mynice High Efficiency, 160° Beam, IP67, 10000K - 12000K, 0.7W & 1.2W LED Module (5 Year Warranty)
Power Transformer
Specification
Installation Guide
Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
*For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)
*For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)
Installation Guide
Raceway
Specification
Size:
5.5" height and 3.5" depth
Customizable length from 10" to 46"
For wider applications, multiple segments are used to achieve the desired length
Accessories:Raceway base (each segment) Raceway cover (each segment) End caps x2 (each raceway) Connect plates x2 (each segment) Mounting brackets x4 (each segment) Self-tapping screws x20 (each segment)
Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.
5.5" height and 3.5" depth
Customizable length from 10" to 46"
For wider applications, multiple segments are used to achieve the desired length
Accessories:
Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.
Raceway Installation Guide:
- List out parts
- Assemble Raceway
- Put Hanger on
