Description

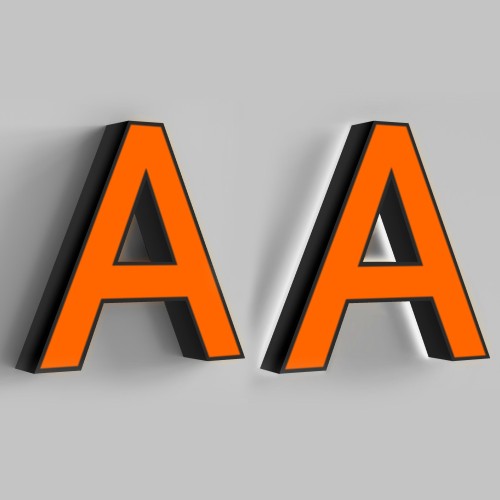

Channel Letters are 3 Dimensional Sign Elements. They are typically displayed on the facade of a building or monument sign. Channel letters are lit with LED modules which have effective light output and require very little electricity. Displaying channel letters is an intelligent way to showcase your brand in front of your customers.

  • Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
  • Certified: UL Listed with Sign Section Labels for Outdoor Installation
  • 5 Year Warranty
Buying Options
Front

Front Lit

Back

Front and Back Lit

Material Options
Material Options

Components

Trim Cap
Trim Caps are plastic molding that surrounds the acrylic face of your channel letter.
Specification
3/4" or 1" Jewelite Trim Caps
Return
Returns are the sides bordering the channel letter.
Specification
3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Returns
Download Return Color Chart
Face
Acrylic Faces is a slightly transparent plastic on the front face of your channel letter.
Specification
3/16" Acrylite, Chemcast Acrylic, Palsun Lexan Faces
Download Face Color Chart
Vinyl
If the color desired is unavailable from out acrylic faces, translucent colored vinyl films can be applied to the face of channel letters.
Specification
3M 3630 Translucent
3635 Day/Night Dual-Color
3635 Blockout Colored Vinyl (Vinyl Colors)
3M IJ8150 Clear Vinyl w/ 8520 Matte Lamination for Digital Print
Download Vinyl Color Chart

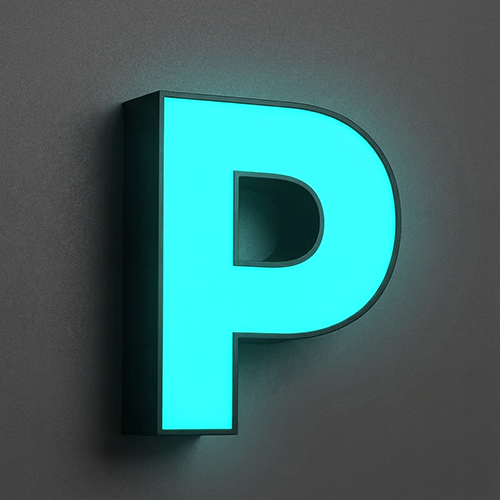

Standard Front Lit
Our standard Front lit channel letters include:
  • 3/4" or 1" Trim Cap
  • 3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Return and Backing
  • 3/16 Acrylic Face
  • LED Lights
  • 3' Power cord for ground and power.
  • Installation Guide and Mounting Pattern

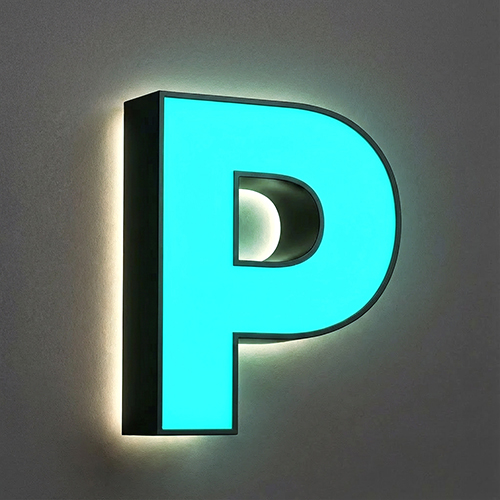

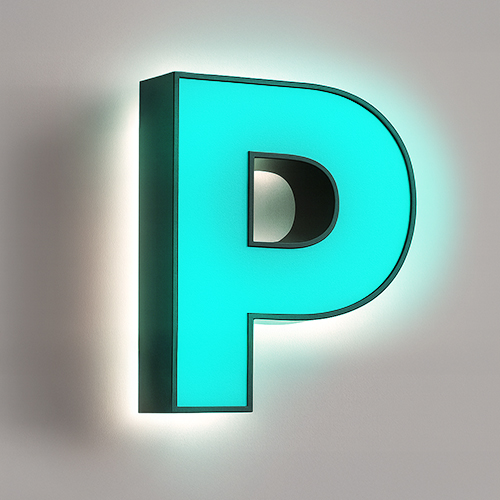

Standard Front/Back Lit
Our standard Front/Back lit channel letters include:
  • 3/4" or 1" Trim Cap
  • 3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Return
  • 1/8" Palsun Clear Lexan Backs
  • 3/16 Acrylic Face
  • LED Lights
  • 3' Power cord for ground and power.
  • Installation Guide and Mounting Pattern
LED Lights
Specification
Mynice High Efficiency, 160° Beam, IP67, 9000K-10500K, 0.7W & 1.2W LED Module (5 Year Warranty)
Power Transformer
Specification
Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
* For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)
Installation Guide
Transformer Installation Guide
Raceway
Specification
Size:
5.5" height and 3.5" depth
Customizable length from 10" to 46"
For wider applications, multiple segments are used to achieve the desired length
Accessories:
  • Raceway base (each segment)
  • Raceway cover (each segment)
  • End caps x2 (each raceway)
  • Connect plates x2 (each segment)
  • Mounting brackets x4 (each segment)
  • Self-tapping screws x20 (each segment)
Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.

Raceway Installation Guide:

  • List out parts
  • Assemble Raceway
  • Put Hanger on
Processor
Clockspeed 100mhz
